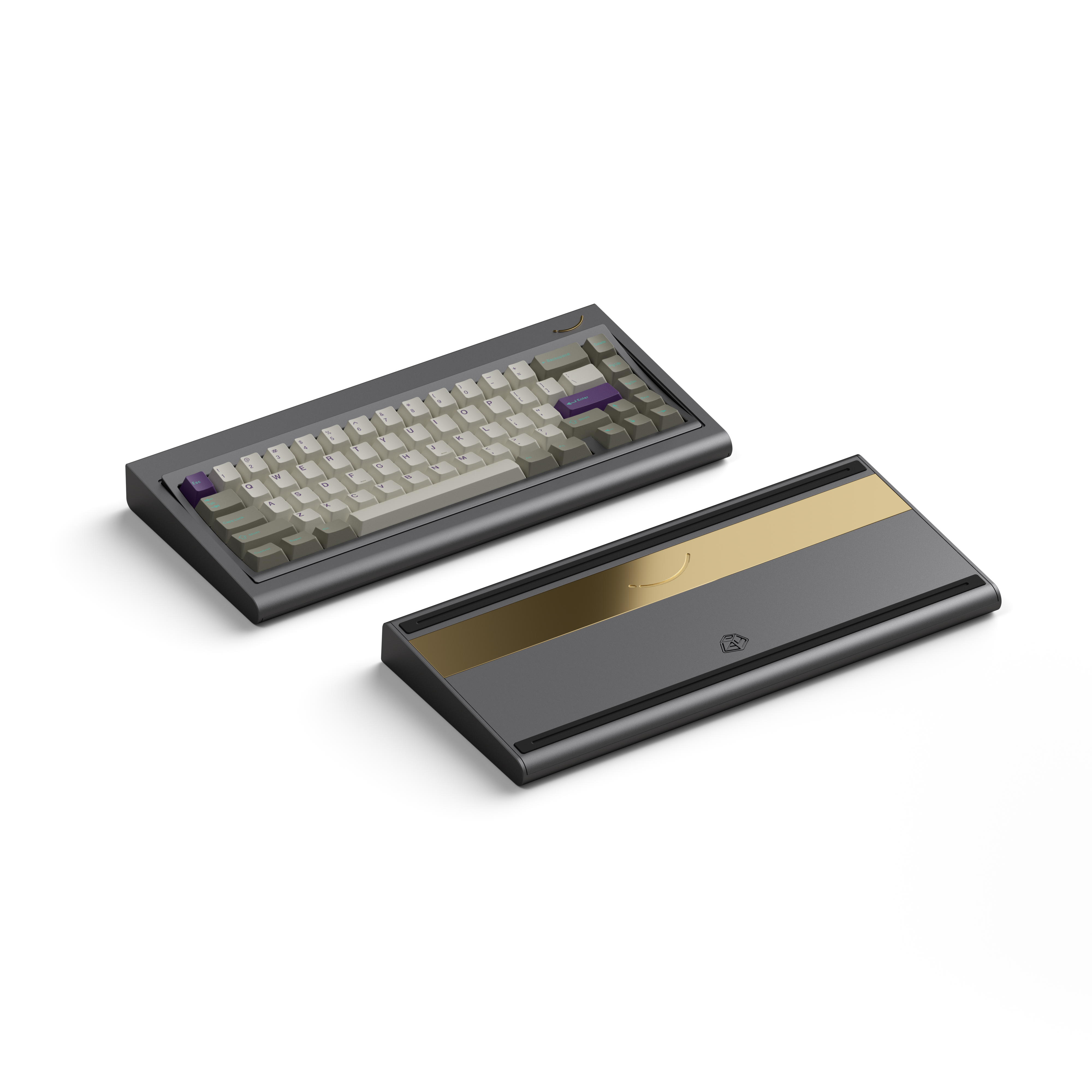

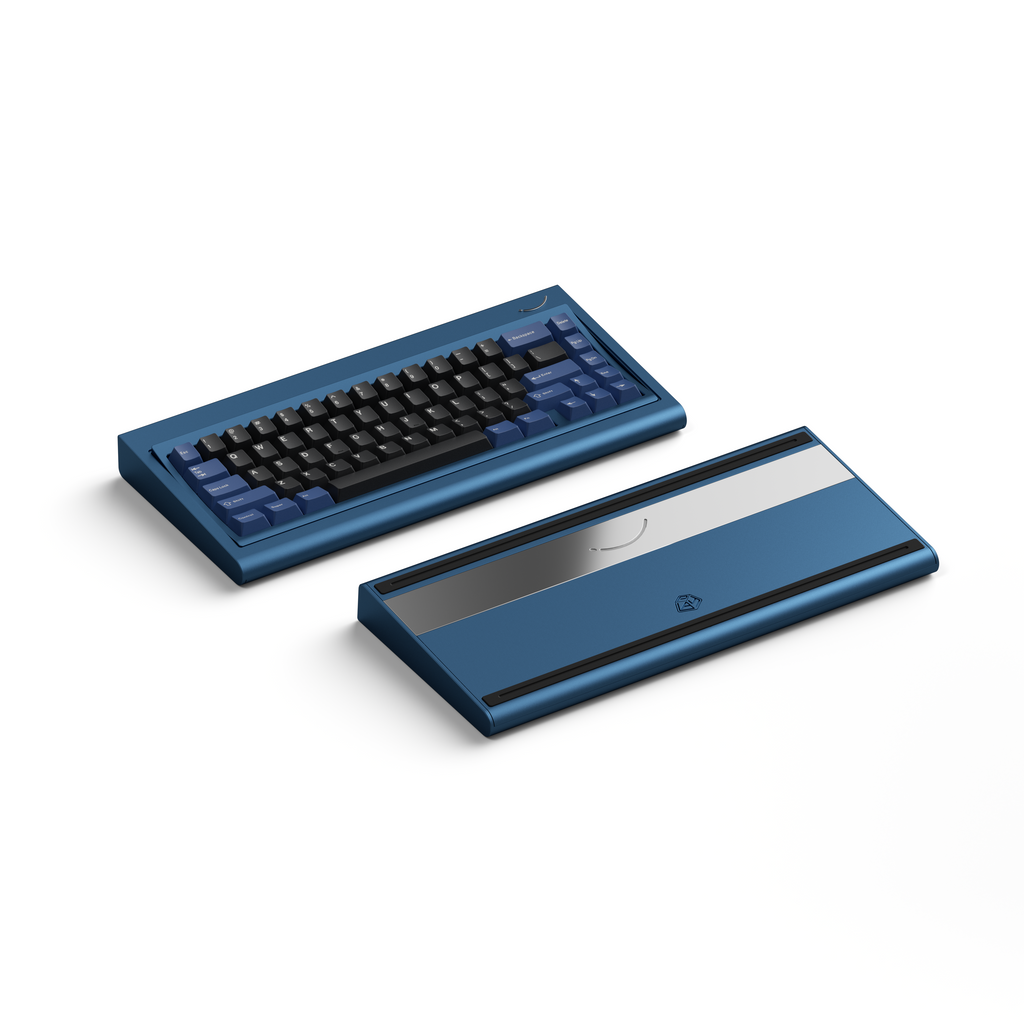

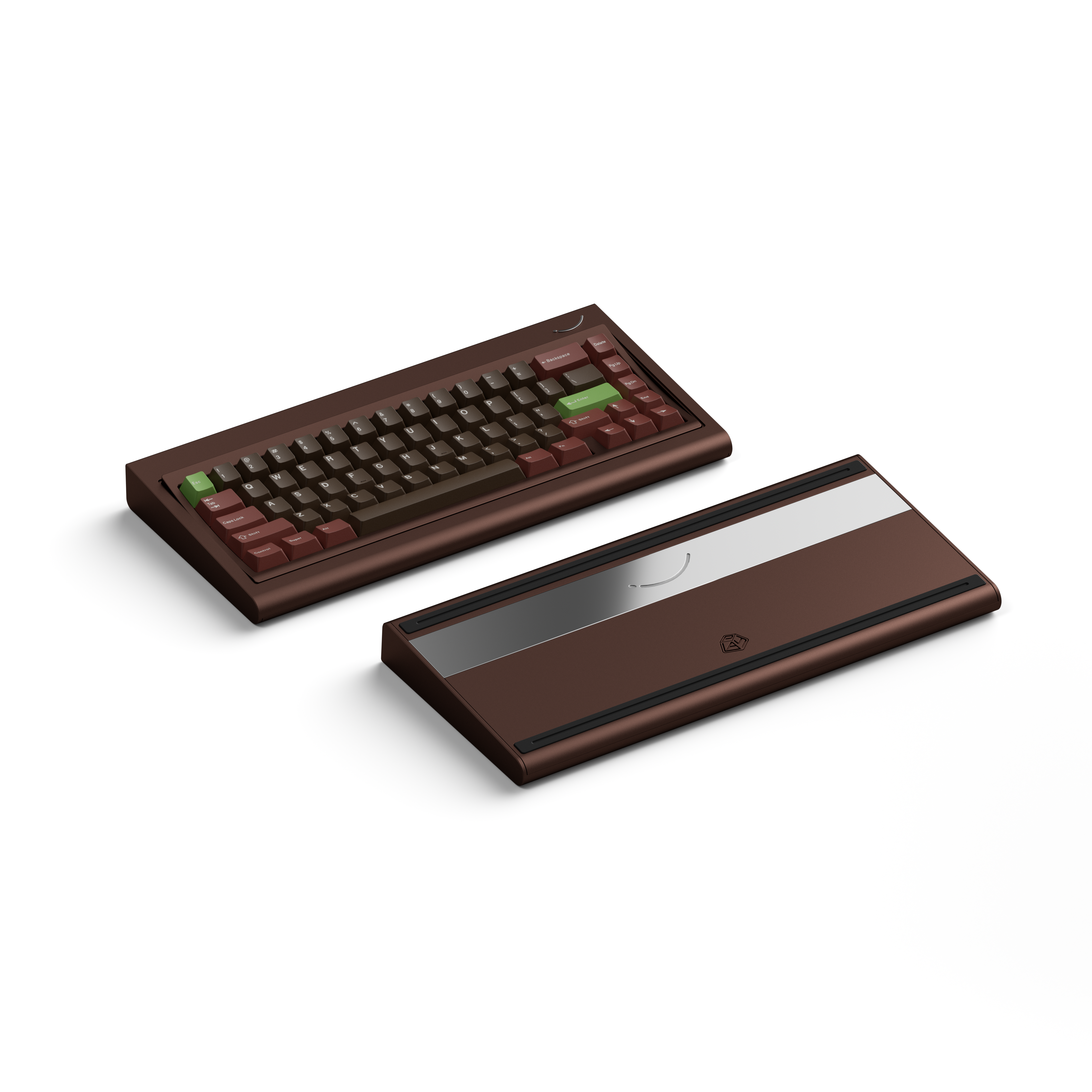

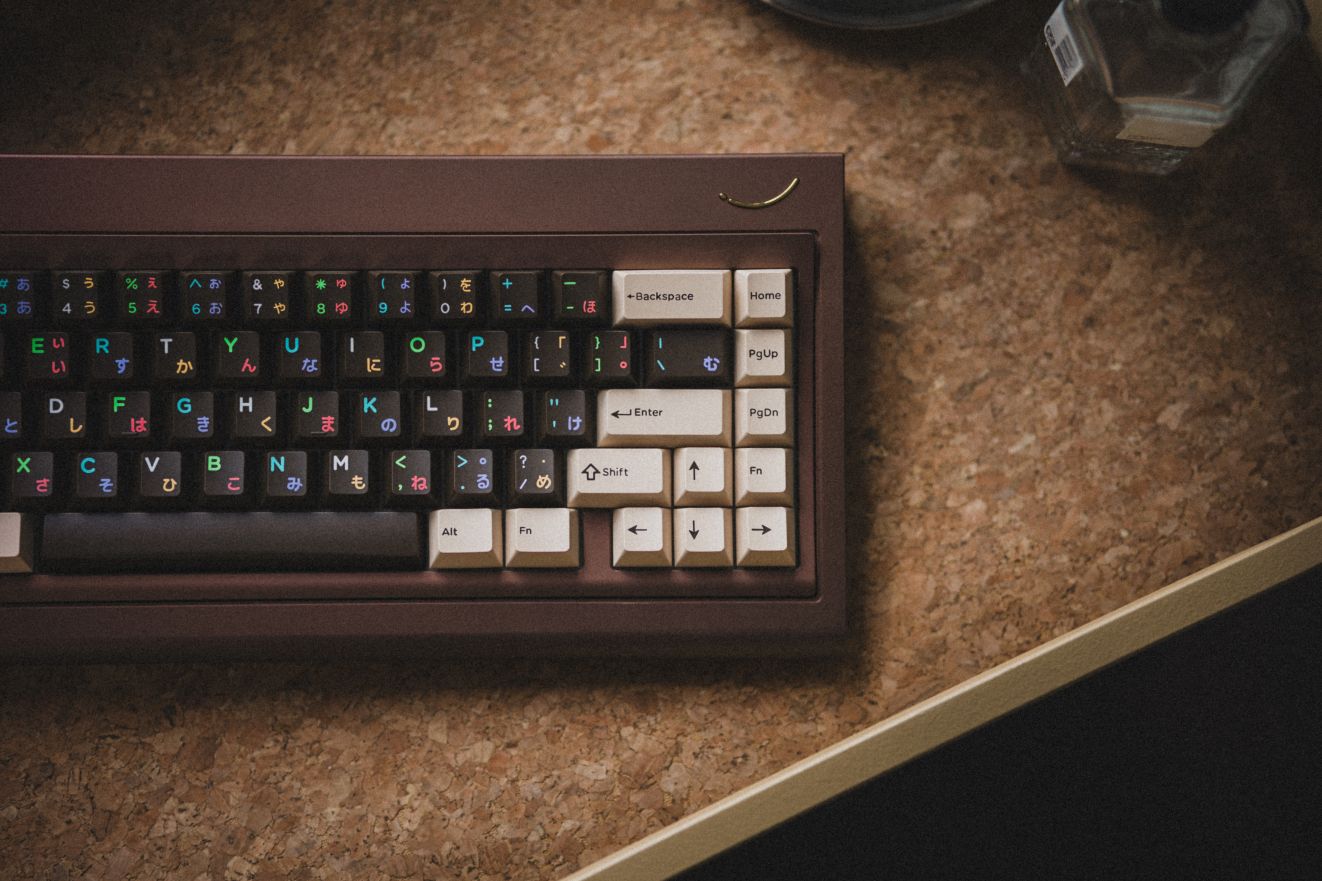

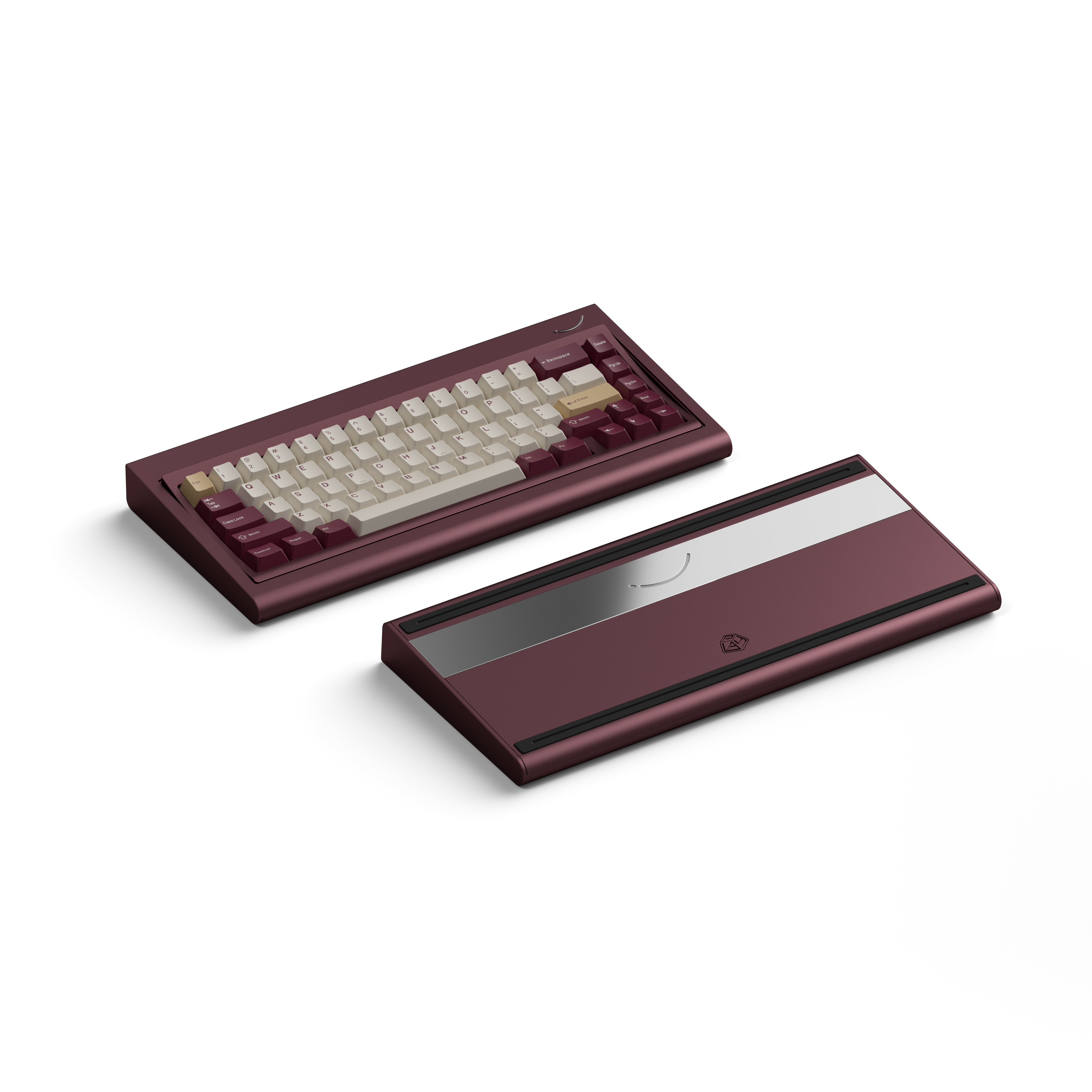

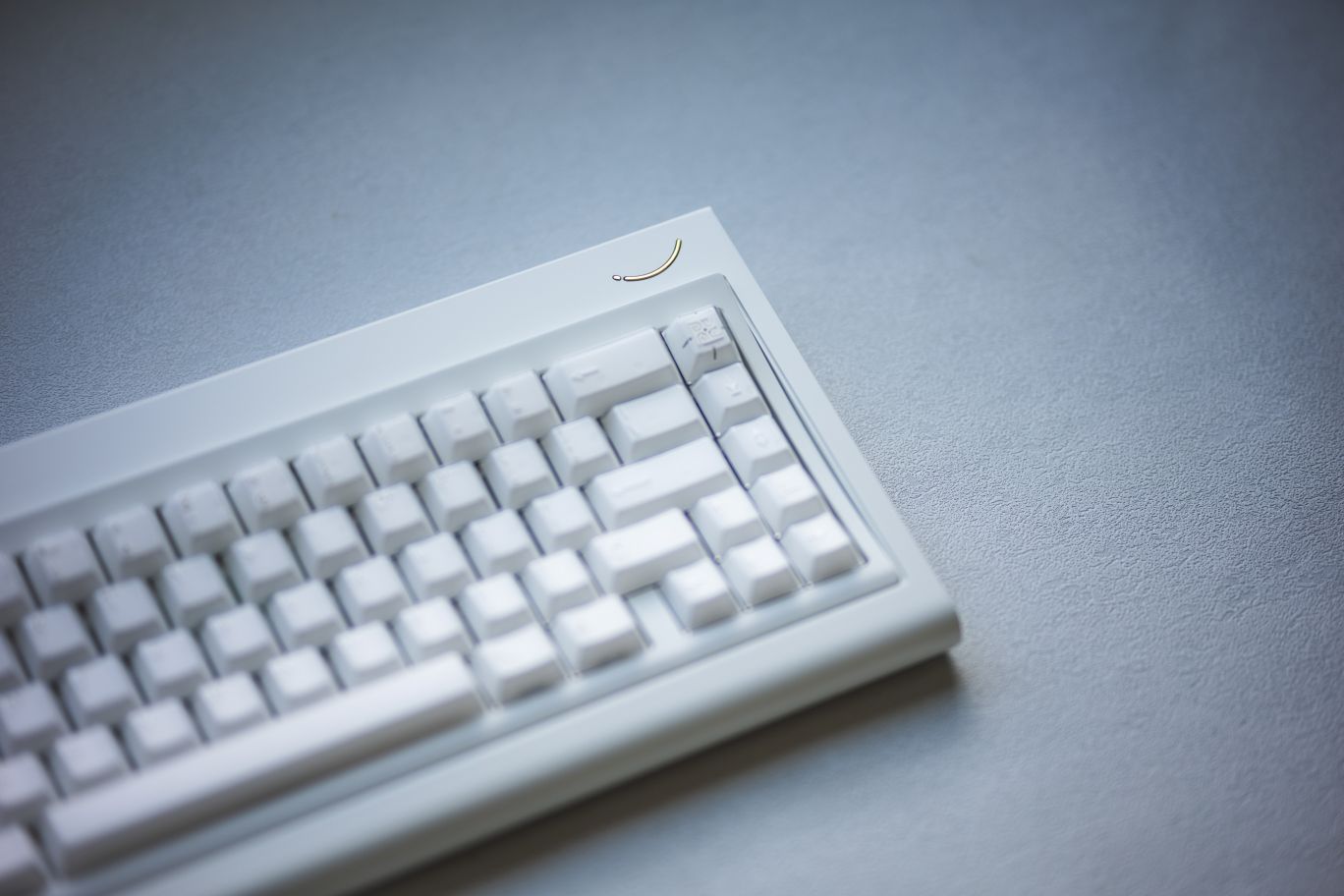

Curve65 Keyboard Kit

$419.00 AUD
Tax included.
by Play Keyboard
Type: Mechanical keyboard kit
Colour
Weight & Logo

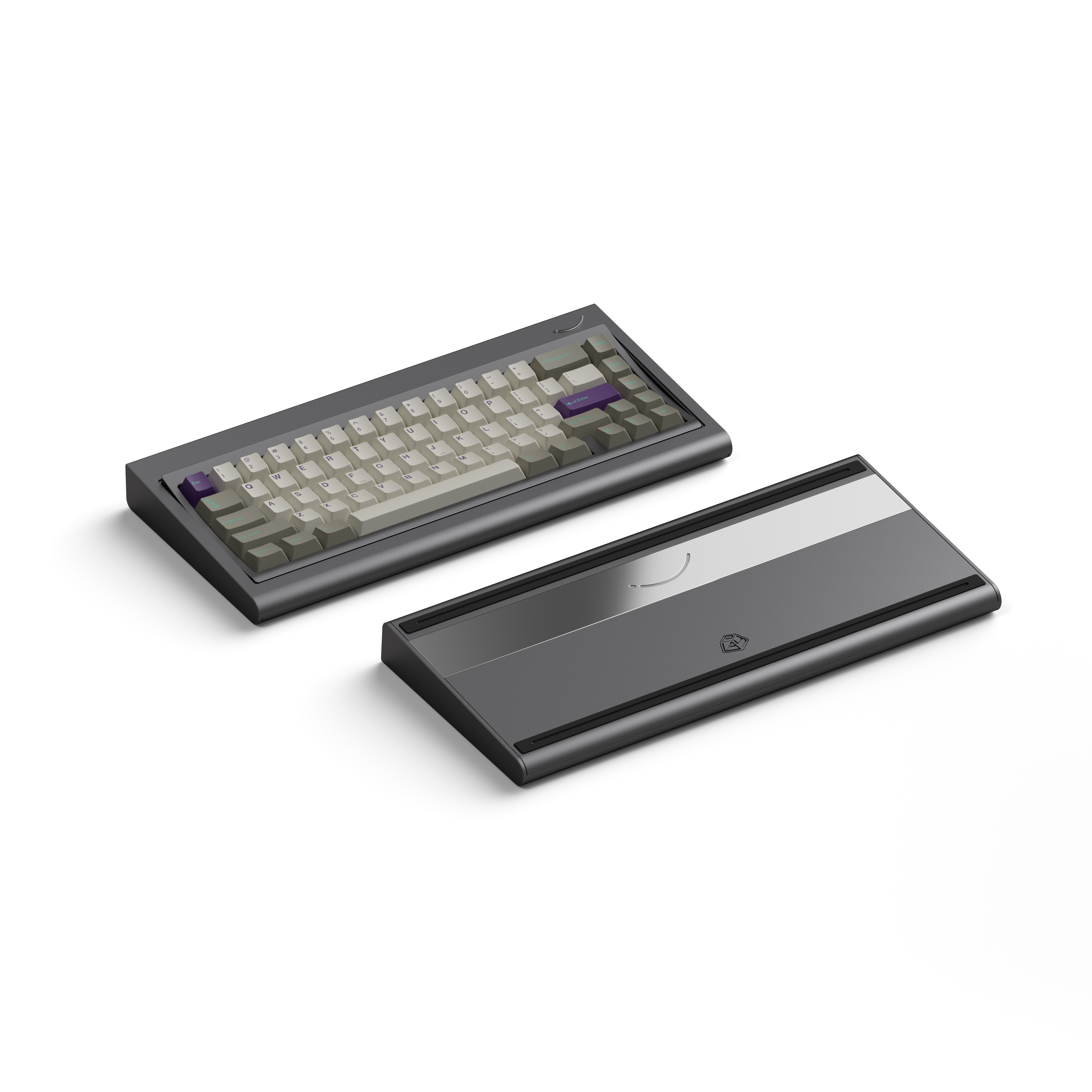

Curve65 Keyboard Kit - Graphite (anodised) / Silver-plated polished is a Group-Buy product.

This is a Group-Buy. Group-Buy period: 25/8/2025, ends 7/9/2025.



> Curve65 Keyboard Kit Add-Ons

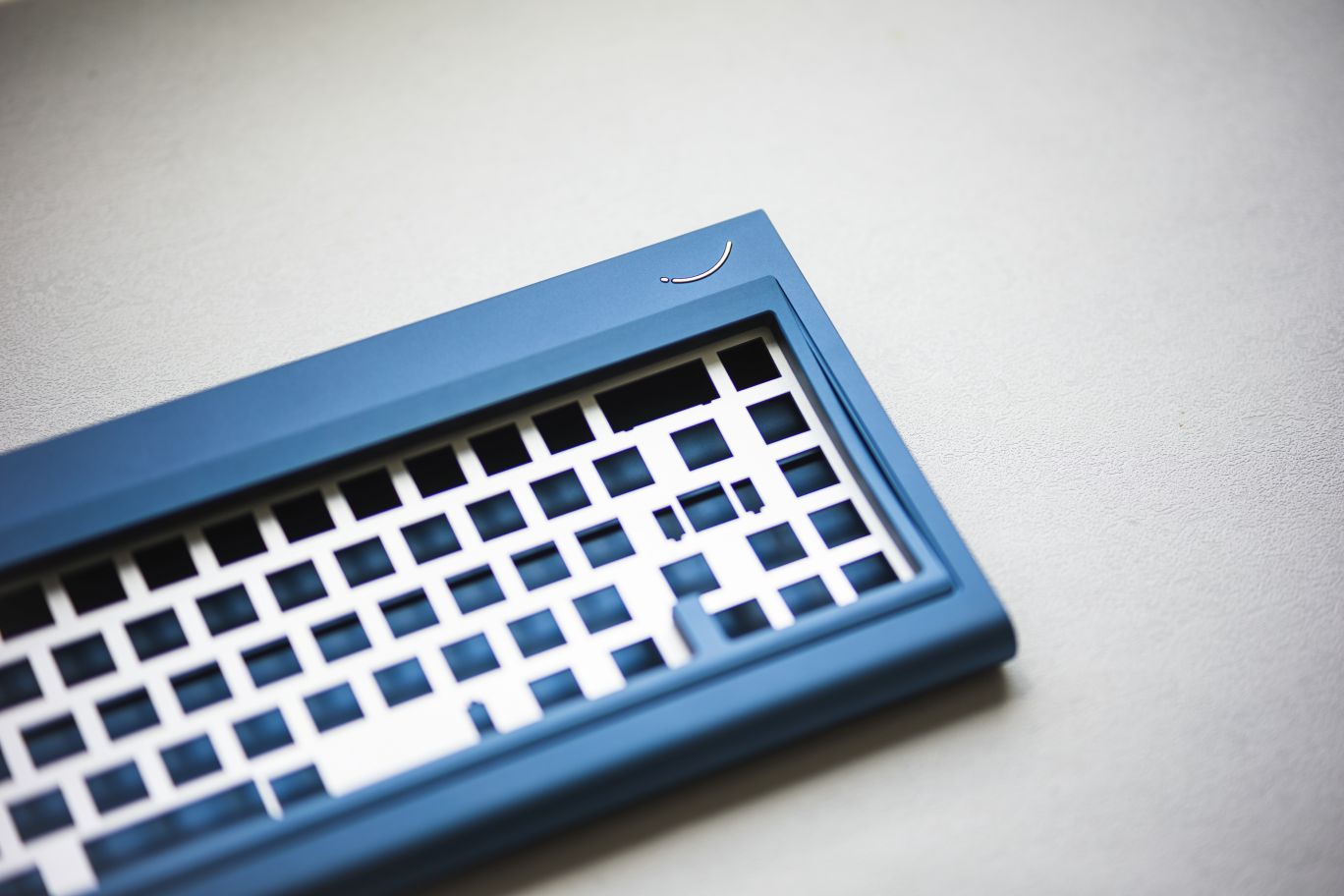

Natural Curve for Your Fingers
Curve65 adopts a curved design that follows the natural motion of your fingers. The arc of the case is more than just styling as it allows your wrists and fingers to stay in a more relaxed position while typing, reducing fatigue during long hours of use.

Smoother Typing Experience
Unlike traditional flat structures, the curved design makes every keystroke smoother, delivering a typing feel that is more fluid and natural.

Natural curve for your fingers. Curve65 keyboard kit.

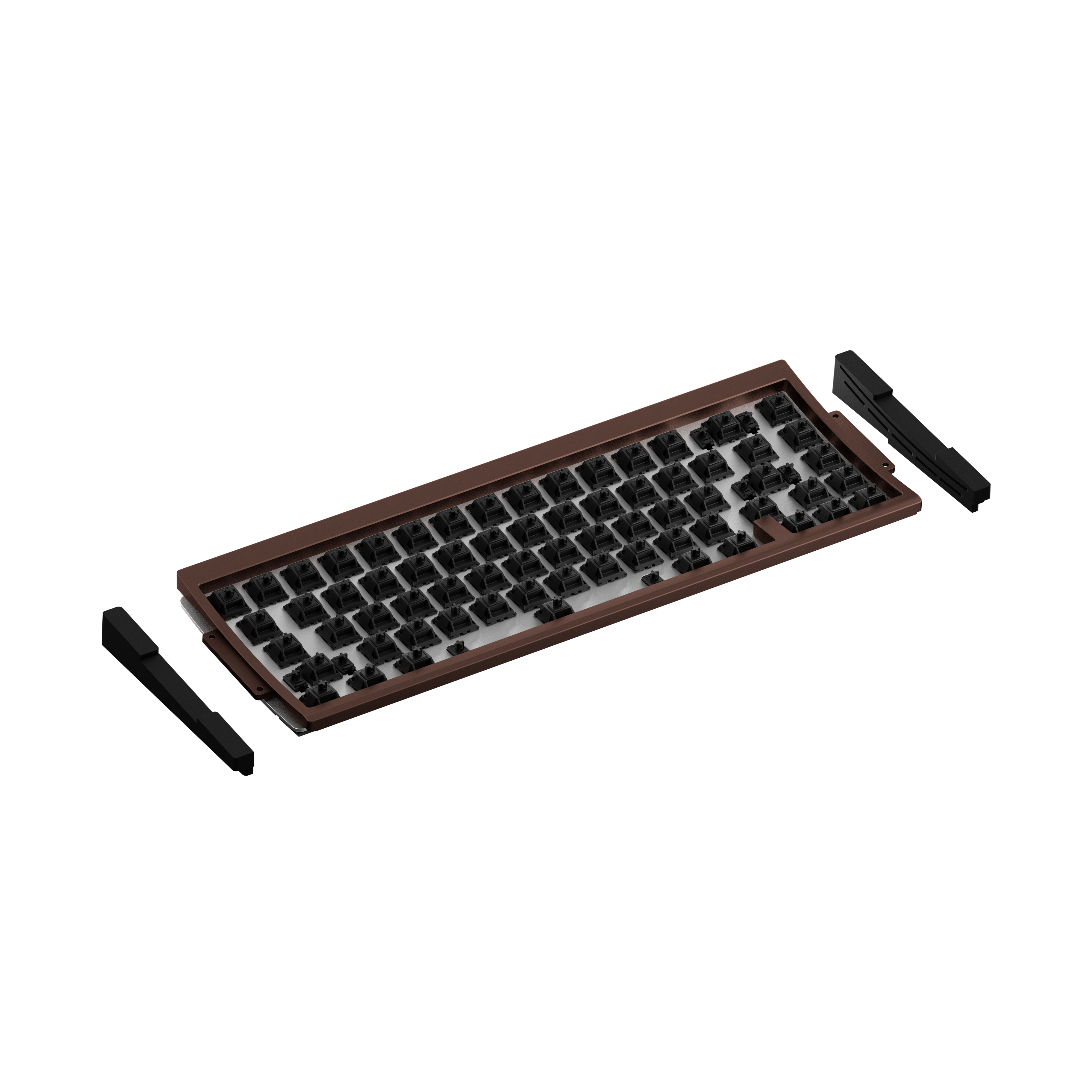

Dual Mounting System: Gasket or Top Mount
Curve65 supports two mounting methods, offering distinct typing experiences:

  • Gasket Mount — Supported by silicone gaskets on both sides, providing a softer and more elastic feedback.
  • Top Mount — Utilising screw points on the curved middle frame, delivering a firm and solid typing feel. Switch freely to create your own ideal typing experience.

Buzzer, Resonating with Every Keystroke
An integrated buzzer responds to your typing rhythm. With VIA software control, you can switch between multiple sound effects to create a personalised typing atmosphere, recreating the charm of retro keyboards.

Supports USB / Bluetooth / 2.4G connections for versatile usage scenarios. Powered by a replaceable 18650 lithium battery, easy to source and swap, and rechargeable via cable for convenience and stable performance.

Supported layout:

Supported keyboard layout for Curve65 keyboard kit.

Specifications:

  • Dimensions: 336 mm × 155 mm
  • Typing angle: 5°
  • Front height: ~18.7 mm
  • Weight: ~2000g (when fully assembled with switches, stabilisers, and keycaps)
  • Keyboard case + keyboard weight: ~2500 g

Material

  • 6061 Aluminium Alloy Top Case
  • 6061 Aluminium Alloy Curved Mid-frame
  • 6061 Aluminium Alloy Bottom Case
  • 6061 Aluminium Alloy Positioning Plate
  • Stainless Steel Series Identification Logo Plate
  • Stainless Steel Bottom Case Weight with Fingerprint-Resistant PVD

PCB features:

  • USB-C
  • Bluetooth
  • 2.4G
  • Hot-swappable

What's included:

  • Top Case × 1
  • Curved Mid-frame × 1
  • Bottom Case × 1
  • Curved Switch Plate × 1
  • Series Identification Logo Plate × 1
  • Bottom Weight × 1
  • PCB-A (Switch PCB) × 1
  • PCB-B (Battery Mount PCB) × 1
  • PCB-C (USB-C Port PCB) × 1
  • Silicone Gasket Mount Pair × 1
  • Poron Sound-dampening Mid Foam × 1
  • IXPE Switch Pad × 1
  • PET Sound-absorbing Pad × 1
  • Poron Foam for PCB Back × 1
  • EPDM Bottom Case Foam #1 × 1
  • EPDM Bottom Case Foam #2 × 1
  • Slip-in Feet Pair × 1
  • Steel Wire Keycap Puller × 1
  • Switch Puller × 1
  • Fan-shaped Dust Cleaning Brush × 1
  • M2.5 × 8 mm Round-head Phillips Case Screws × 6
  • M2.5 × 5 mm Countersunk Phillips Curved Mid-frame Screws × 4
  • M3 × 3 mm Countersunk Phillips Weight Block Screws × 3
  • M2 × 4 mm Countersunk Phillips PCB-B, PCB-C, and Logo Plate Screws × 4

Vendors:

  • CN: zFrontier
  • US: NovelKeys_
  • KR: Swagkeys
  • AU: You are here
  • UK: Prototypist
  • DE: Keygem
  • SG: Qwertypop
  • Global/TW: Play Keyboard

Made by Play Keyboard
