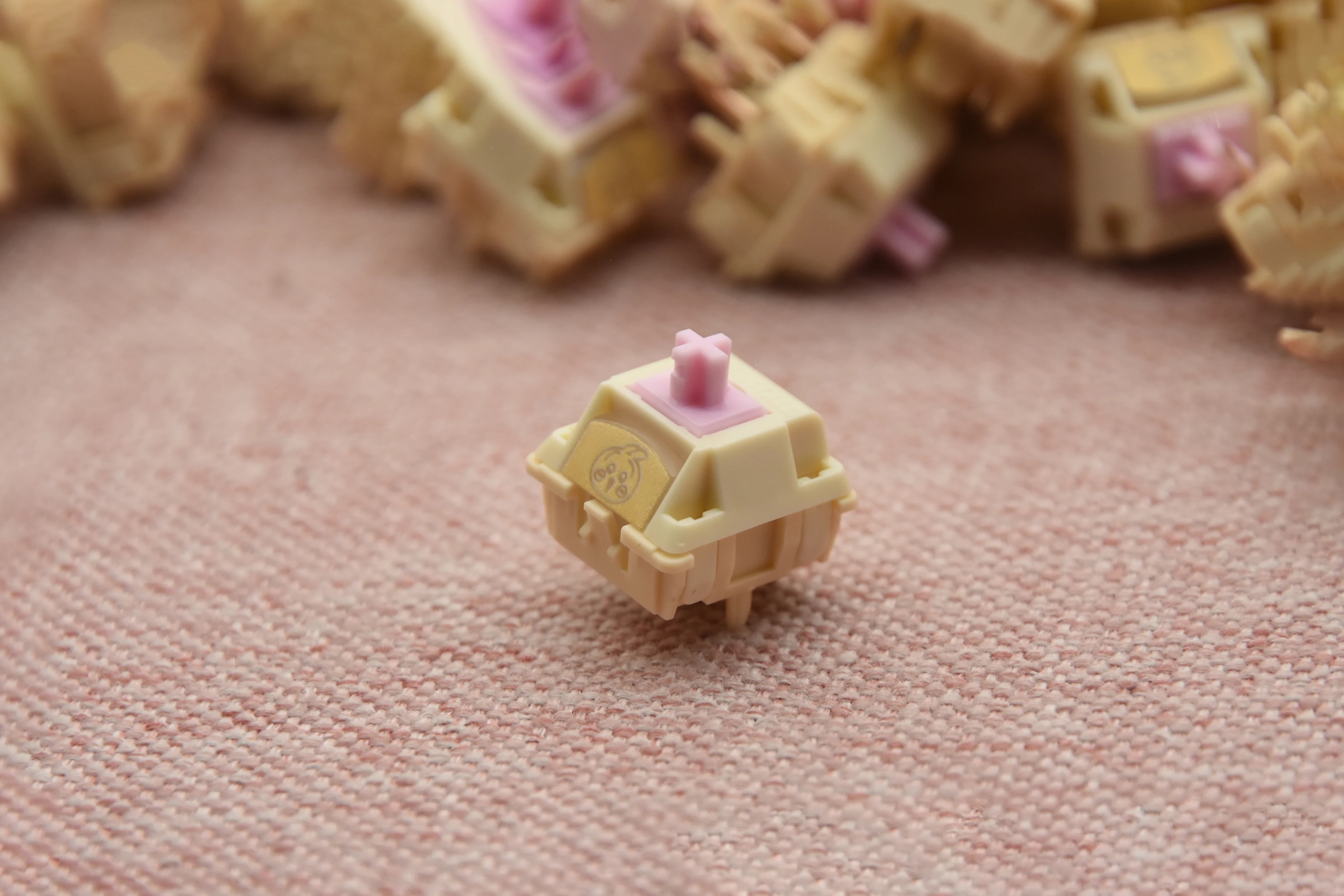

The Uchi V2 linear switch is a cute, thocky, and creamy linear switch design by Xida Studio and manufactured by Wingtree. The Uchi light diffuser is its distinguishing feature. It not only looks cute but also helps RGB light to pass through for a better RGB effect.
They come with light spring weights for an easy and comfortable typing experience; Thanks to the 20mm spring, they feel very snappy and responsive at the same time.
Switches sold in multiple of 10 and will be packed in a zipped bag or in a box.
Specs:
- Linear
- PC top housing
- PA66 + a small amount of fiberglass bottom housing
- UPE stem
- 37±2g operating force, 43±2g bottom out
- 1.8mm pre-travel, 3.6±0.2mm total travel
- 20mm spring
- Factory Lubed: Stem legs and stem sliders are covered with a very thin coat of 205g0. The spring and leaf are lubed with dry film. Everything else is dry. There is no lube in the bottom housing or anywhere near the stem pole. The chance that these get lube pooling issue is very small.
- Designed by Xida
- Manufactured by Wingtree
